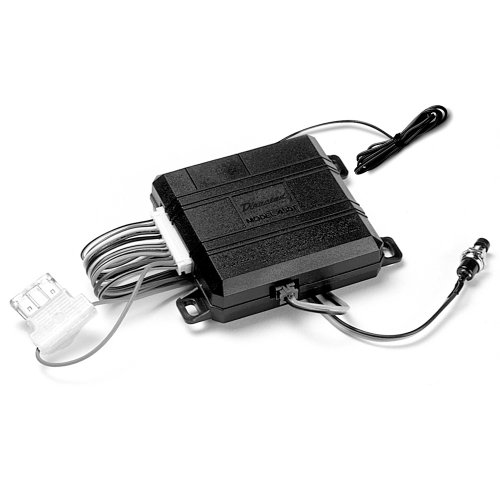

Install Essentials 450R Channel Expander

Product Review

The 450-R Programmable Receiver is a 6 channel receiver that has user programmable outputs. It will learn channels from any "HF" transmitter. An advanced Learn Routine is used to store transmitter channels as well as to program the output types. The system will supply and output whenever the transmitter button controlling the channel is pressed. All of the outputs of the 450R are 200ma low current devices. They cannot be used to drive high current loads directly. Relays must be used to drive high current loads. Since the unit can generate latching outputs, take care to insure that relays are not latched on when the vehicle is left for extended periods of time. This will prevent battery drain. Important! Damage to the output devices will occur if they are connected to motors, solenoids or other high current loads.
